Description

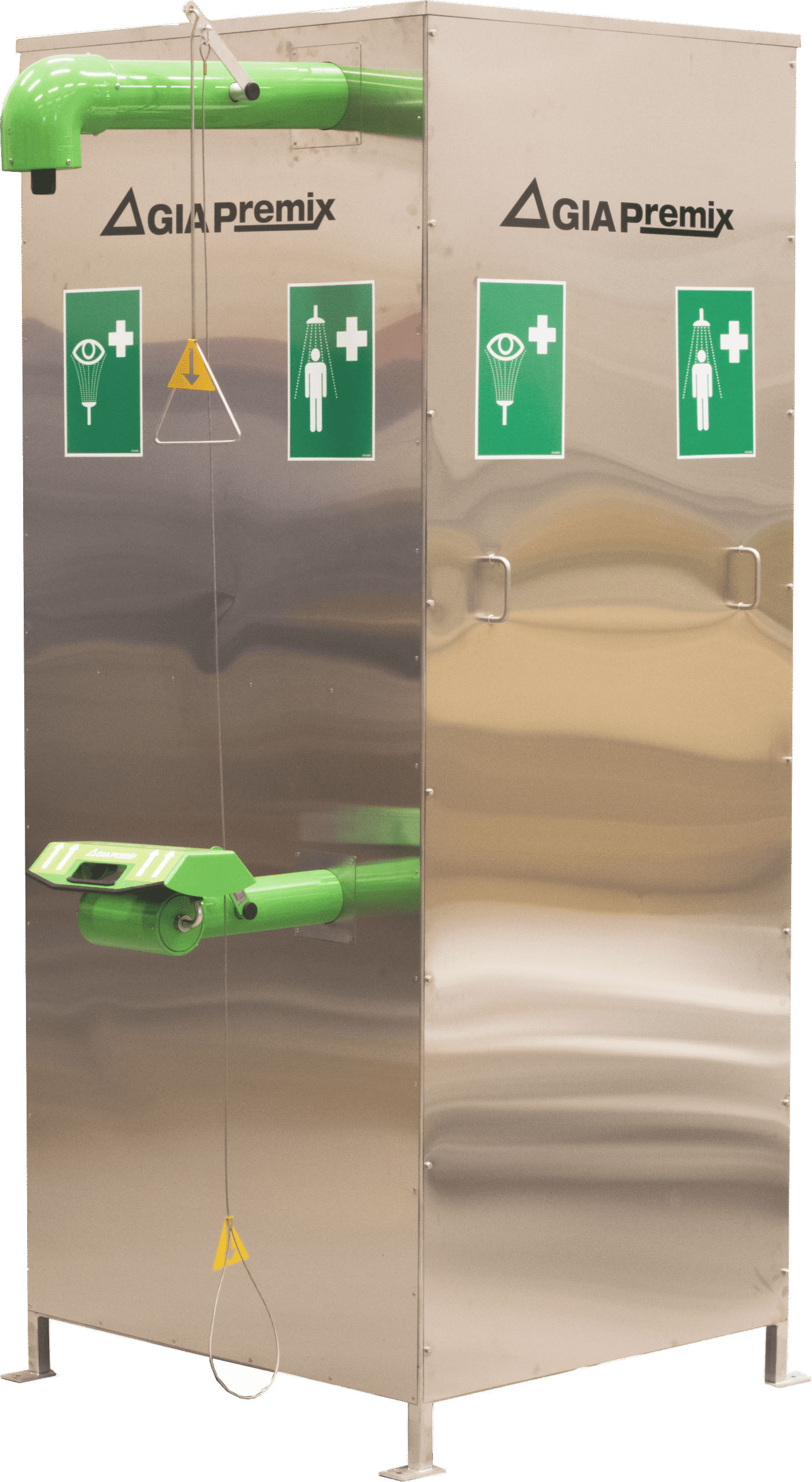

Frost protected combination unit for outdoor use.
With water heater, safety mixer, heat trace cable and thermostat. Frame work and wall panels in stainless steel.
Pipings for body shower and eye/face wash in stainless steel with casing in painted PVC.

Supplied with emergency signs, control card, dimension drawing and operating instructions.

Meets the requirements of EN–and ANSI standards.



Art-nr: 821100-500
Flow rate: 76 + 26 liter/min
Working pressure: 2.4–7 bar
Water supply: Male DN 25/28 mm
Heat trace cable: Raychem BTV-5BTV2-CT
Supply voltage: 400 V~ 3-phase
Thermostat: Raychem AT-TS-13/14
Frame work: Stainless steel 1.4404
Wall panels: Stainless steel 1.4301
Dimension (L/W/H): 160/120/245 cm





---

Downloads

• Produktblad, pdf
• Ritning, pdf
